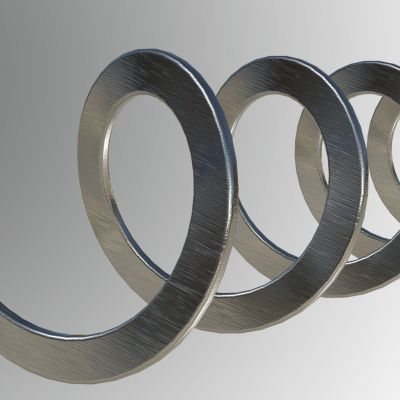

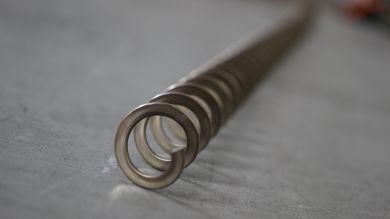

Flexible shaftless screw
Based on our business experience, we offer light spirals from 36 mm to 100 mm in diameter. These dimensions are usually immediately available from our warehouse.
Based on our business experience, we offer light spirals from 36 mm to 100 mm in diameter. These dimensions are usually immediately available from our warehouse.
SPIRAL:

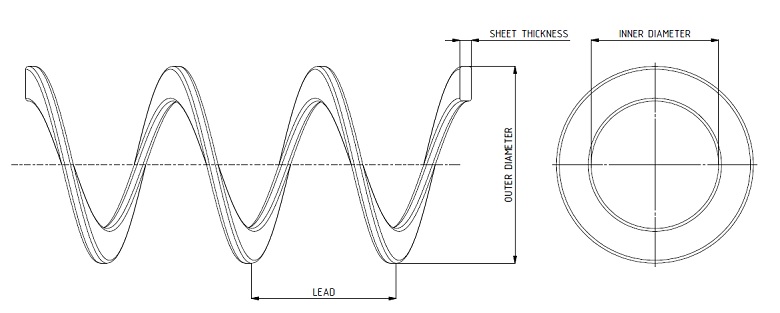

| Type | Spiral outside diameter | Thread pitch | Spiral inside diameter | Spiral thickness | Spiral material |
| (mm) | (mm) | (mm) | (mm) | ||
| Flexible shaftless screw SL 38 | 38 | 31 | 22 | 4 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLN 38 | 38 | 31 | 22 | 4 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SL 40 | 40 | 40 | 24 | 3,2 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLN 50 | 50 | 38 | 34 | 4 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SLN 52 | 52 | 37 | 28 | 4,7 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SLN 52 | 52 | 37 | 32 | 3,4 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SLN 52 | 52 | 37 | 28 | 6 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SL 53 | 53 | 37 | 33 | 4 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 53 | 53 | 37 | 33 | 4,3 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 60 | 60 | 40 | 36 | 4,3 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 60 | 60 | 50 | 36 | 4 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLK 60 | 60 | 40 | 48 | 6 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 61 | 61 | 42 | 37 | 4,8 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 61 | 61 | 42 | 37 | 5 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 61 | 61 | 60 | 37 | 4 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLN 61 | 61 | 42 | 37 | 4,7 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SL 68 | 68 | 50 | 44 | 5 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 68 | 68 | 68 | 44 | 7 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLN 68 | 68 | 50 | 44 | 4,7 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SLN 68 | 68 | 50 | 44 | 6 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SLN 68 | 68 | 60 | 44 | 4 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SLK 68 | 68 | 50 | 52 | 8 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLNK 68 | 68 | 50 | 52 | 8 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SL 70 | 70 | 50 | 46 | 4 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 70 | 70 | 50 | 46 | 4,3 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 70 | 70 | 65 | 46 | 4 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLK 70 | 70 | 65 | 46 | 12 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 74 | 74 | 50 | 44 | 4,7 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 74 | 74 | 50 | 46 | 5 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLN 90 | 90 | 60 | 66 | 4,7 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SLN 90 | 90 | 60 | 66 | 6 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SLN 94 | 94 | 66 | 66 | 5 | Stainless steel (ASTM - AISI 302) |
| Flexible shaftless screw SL 95 | 95 | 66 | 66 | 4,7 | Steel (EN - S235, S355) |
| Flexible shaftless screw SL 95 | 95 | 66 | 66 | 5 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLK 95 | 95 | 70 | 71 | 12 | Steel (EN - S235, S355) |
| Flexible shaftless screw SLK 100 | 100 | 70 | 76 | 12 | Steel (EN - S235, S355) |
Black marked types = steel spiral design
Red marked types = stainless steel spiral design
