Screws, augers

Screw

Based on our business experience, we offer worms from 70 mm to 600 mm in diameter. These dimensions are usually immediately available from our warehouse.

Conveyor made from

SCREW:

  • TYPE ZL - steel (according to EN - S235, S355)
  • TYPE ZLN - stainless steel (according to ASTM - AISI 304, AISI 316)

TYPES OF SCREW

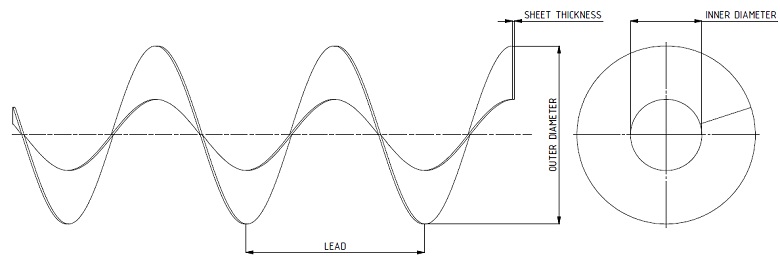

Type Spiral outside diameter Thread pitch Spiral inside diameter Spiral thickness Spiral material
  (mm) (mm) (mm) (mm)
Screw ZLN 70 70 70 22 4/2 Stainless steel (ASTM - AISI 304)
Screw ZL 80 80 80 27 3/1,5 Steel (EN - S235, S355)
Screw ZL 100 100 100 27 3 Steel (EN - S235, S355)
Screw ZL 120 120 120 27 3 Steel (EN - S235, S355)
Screw ZL 130 130 130 27 3 Steel (EN - S235, S355)
Screw ZL 140 140 140 34 3 Steel (EN - S235, S355)
Screw ZL 150 150 150 48 3 Steel (EN - S235, S355)
Screw ZL 160 160 160 48 3/1,5 Steel (EN - S235, S355)
Screw ZL 180 180 180 60 4/2 Steel (EN - S235, S355)
Screw ZL 200 200 200 61 6/3 Steel (EN - S235, S355)
Screw ZLN 200 200 150 60 4/2 Stainless steel (ASTM - AISI 304)
Screw ZLN 200 200 200 60 4/2 Stainless steel (ASTM - AISI 304)
Screw ZLN 245 245 200 57 5 Stainless steel (ASTM - AISI 316)
Screw ZL 250 250 200 61 4/2 Ocel (EN - S235, S355)
Screw ZL 250 250 250 61 4 Ocel (EN - S235, S355)
Screw ZLN 250 250 250 60 6/3 Stainless steel (ASTM - AISI 304)
Screw ZL 300 300 250 61 6 Steel (EN - S235, S355)
Screw ZL 300 300 300 61 6/3 Steel (EN - S235, S355)
Screw ZLN 300 300 300 89 4/2 Stainless steel (ASTM - AISI 304)
Screw ZL 315 315 315 102 4 Steel (EN - S235, S355)
Screw ZLN 350 350 250 65 5 Stainless steel (ASTM - AISI 316)
Screw ZL 400 400 400 102 6/3 Steel (EN - S235, S355)
Screw ZL 400 400 400 102 8/3,5 Steel (EN - S235, S355)
Screw ZLN 550 550 300 220 5 Stainless steel (ASTM - AISI 304)
Screw ZL 600 600 600 169 8 Steel (EN - S235, S355)



Black marked types = steel screw design

Red marked types = stainless steel screw design

More than 5 000 units of conveyors for nearly 600 kinds of materials in 30 years of market experience guarantee professionalism even for your demand.
